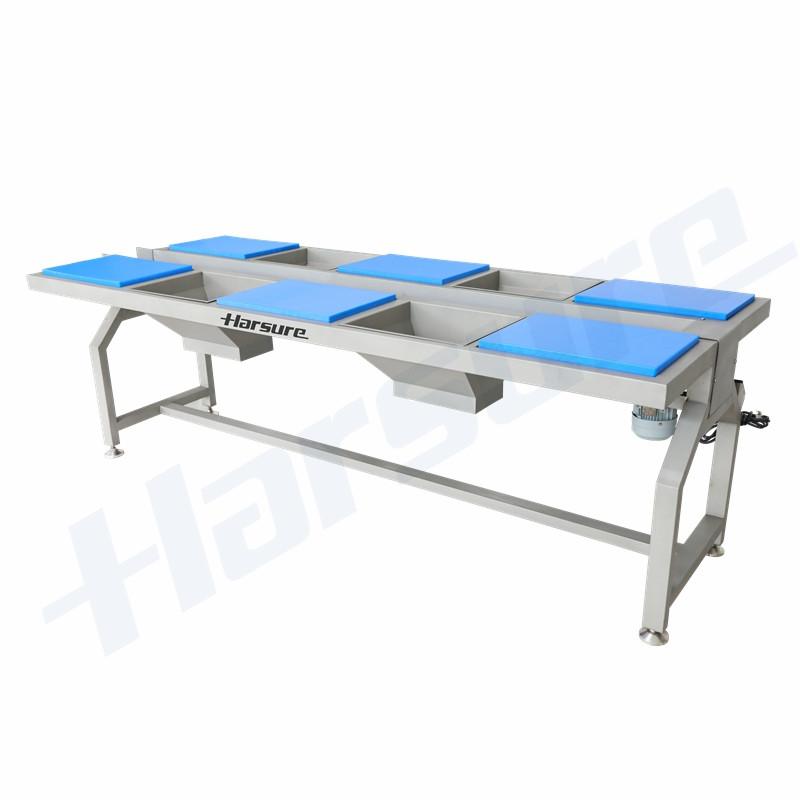

Ⅰ. Six-station Sorting Table (Sorting Conveyer)
▶Product size (LxWxH): 2500*1020*895mm;
Input voltage: 380V, power: 0.37kW, equipped with control switch;
▶Equipment features:
1. The whole machine is made of SUS304, and the surface is sandblasted;
2. Food grade non-slip rubber conveyor belt, the effective width is 160mm;
3. There are 6 sanitary cutting boards (nylon material, removable, easy to clean) and 4 waste collection funnels on the side;
4. Belts can be quickly released and cleaned.

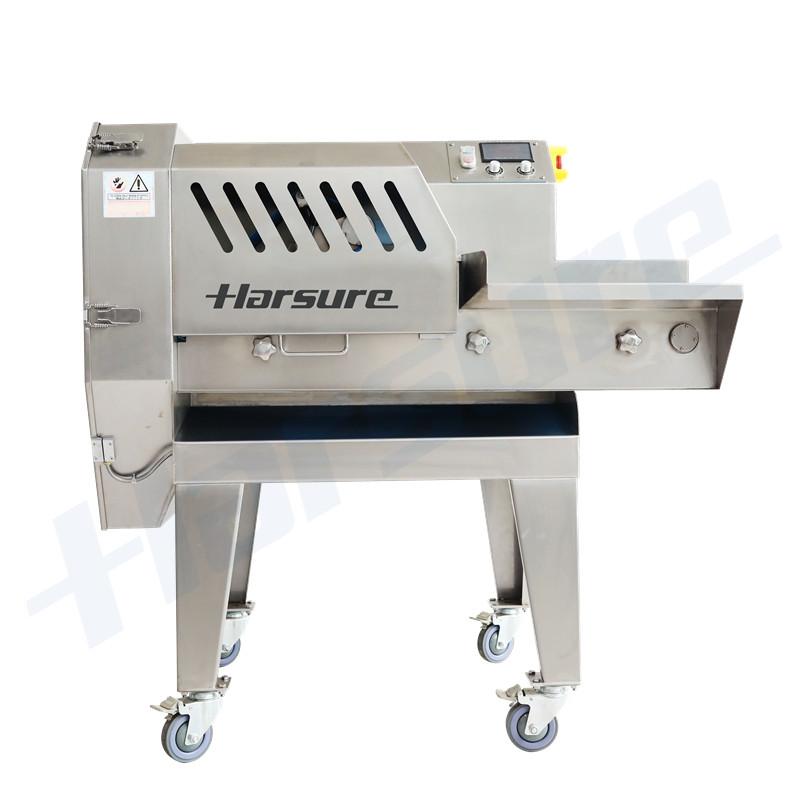

Ⅱ. (Quick Release) Large Vegetable Slicer
▶Product size (LxWxH): 980*760*1570mm
Voltage/frequency: 220v/50HZ
Cutting thickness: 2-6mm
Strip size: 3*3mm or more
Cutting length: 0-60mm
Production capacity: 800-1500kg/h
▶Application: Suitable for cutting leafy vegetables, cutting long strips of materials such as Chinese cabbage, cabbage, spinach, kelp, garlic sprout into shreds, slices, segments, etc., suitable for automatic production.

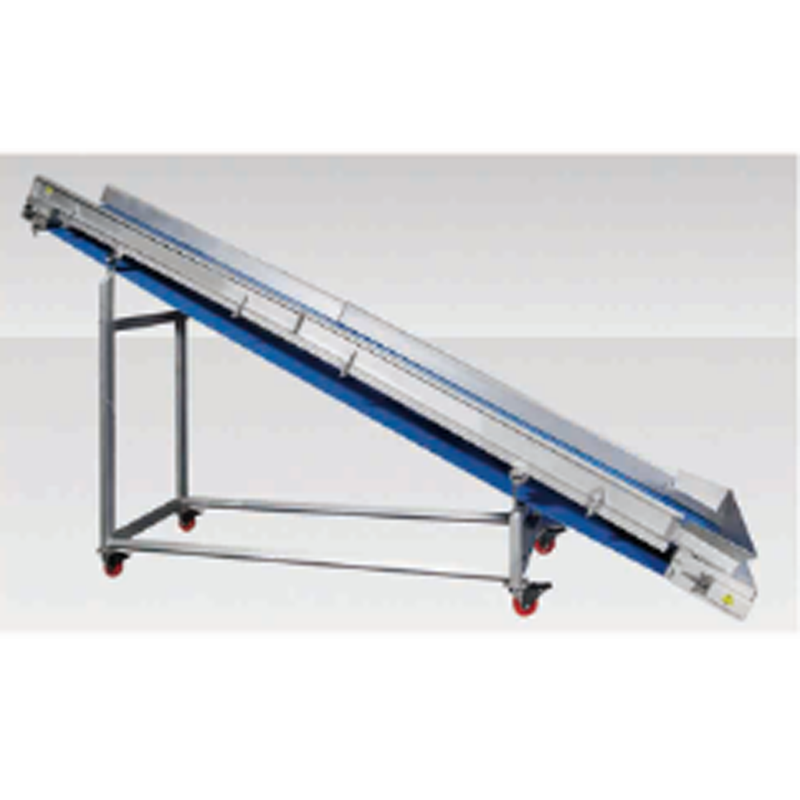

Ⅲ. Elevating Conveyor
▶Product size (LxWxH): 3570*1020*1575mm
▶Application: The conveying device is conveyed by belt, and the material is lifted to the designated process after being lifted by the conveyor belt.
▶Equipment features:
1.The whole machine is made of high-strength SUS304, the surface is sandblasted, the frame is made of 2 mm thick 40*60 rectangular tube, and the thickness of other parts is 2 mm.
2.The parts that touch the food can be quickly disassembled and assembled by hand.
3. The feeding method is continuous.
4. The conveyor belt is made of PVC, and the guide rail type flat belt can prevent deviation and side slip, safe, reliable and durable.
5. The detachable hopper device is used to realize the flexible matching between the elevator and different equipment.
6. Movable casters are installed at the bottom, which is convenient for on-site installation.

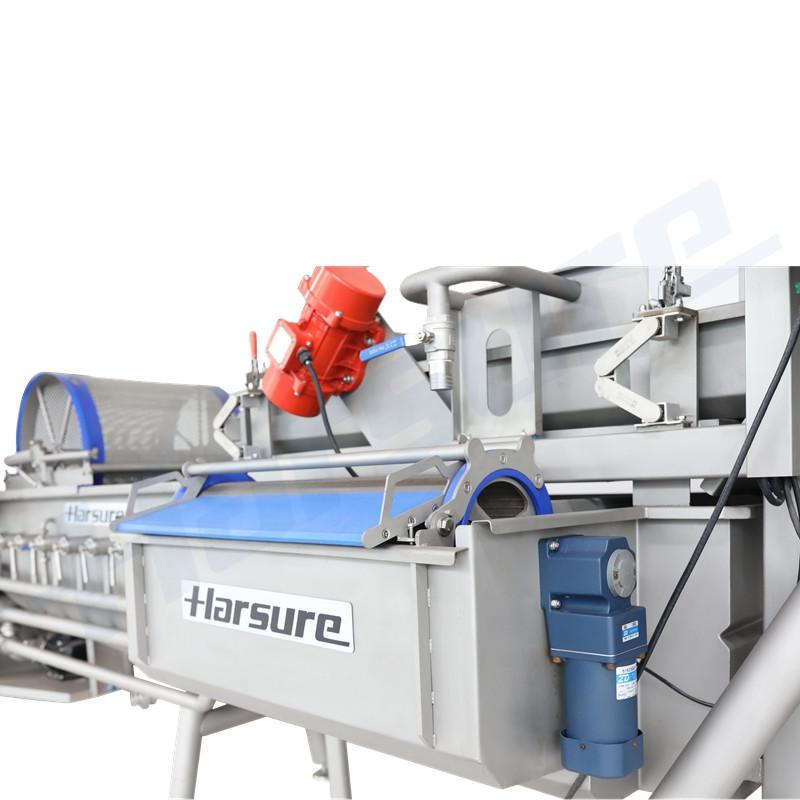

Ⅳ. Primary Spiral Flow Washer
▶Product size (LxWxH): 4020*1710*1620mm
Input voltage: 380V, power: 4.15kW, adopt CHINT or equivalent brand electrical components;
▶Application: vegetable cleaning and impurity removal
1) Utilize the natural mechanics principle of water tumbling and scouring, so that vegetables will not be damaged during the whole washing process, thereby realizing industrialized and standardized vegetable cleaning treatment.
2) Thoroughly remove light or small heavy impurities such as sediment, dust, pebbles, etc., and effectively sterilize and remove pesticide residues at the same time.
▶Application: vegetable cleaning and impurity removal
1) Utilize the natural mechanics principle of water tumbling and scouring, so that vegetables will not be damaged during the whole washing process, thereby realizing industrialized and standardized vegetable cleaning treatment.
2) Thoroughly remove light or small heavy impurities such as sediment, dust, pebbles, etc., and effectively sterilize and remove pesticide residues at the same time.
Ⅴ. Secondary Spiral Flow Washer
▶Product size (LxWxH): 4020*1710*1620mm
Input voltage: 380V, power: 4.15kW, adopt CHINT or equivalent brand electrical components;
▶Application: vegetable cleaning and impurity removal
1) Utilize the natural mechanics principle of water tumbling and scouring, so that vegetables will not be damaged during the whole washing process, thereby realizing industrialized and standardized vegetable cleaning treatment.
2) Thoroughly remove light or small heavy impurities such as sediment, dust, pebbles, etc., and effectively sterilize and remove pesticide residues at the same time.

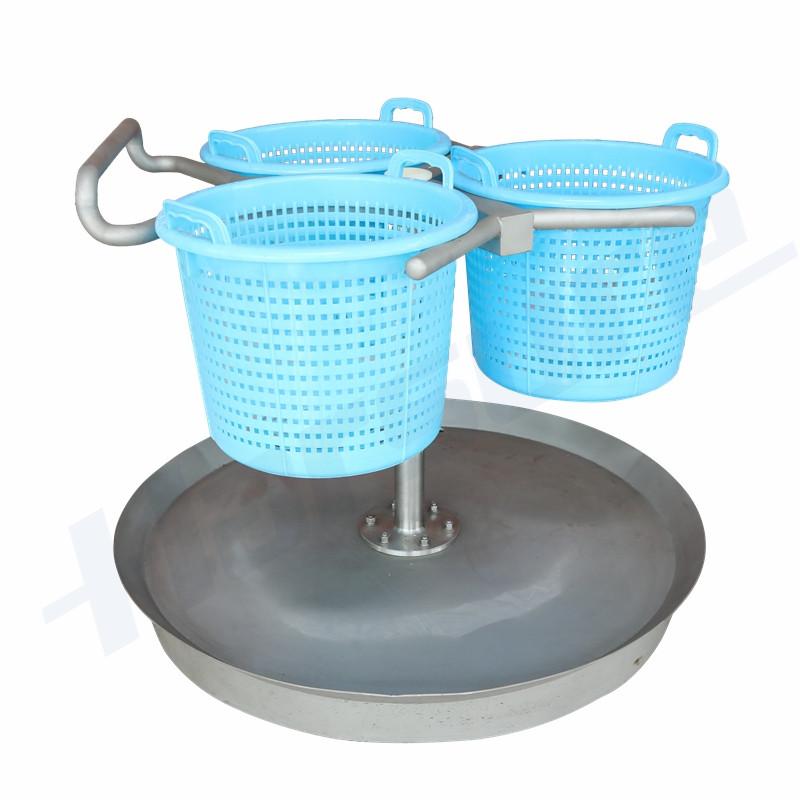

Ⅵ. Rotary Receiving Cart
▶Product size (LxWxH): 1050*1050*850mm
▶Application:
○For storage, handling, draining and turnover of food materials;
○It is mainly used with the drying basket. After the material is cleaned and drained, it falls into the drying basket on the receiving cart, and then is further dried by the dehydrator;
○Complete the connection of semi-automatic production line nodes, improve work efficiency, easy to use, hygienic and reliable;
○The main applicable materials include: fruit and vegetable materials, fish and meat materials.▶Equipment features:
○The whole machine is made of high-strength SUS304, and the surface is sandblasted;
○Equipped with three sets of cantilever basket supports, and the chassis is equipped with a drain valve for accumulated water;
○Hand-push purely mechanical structure, nylon universal casters are installed at the four corners of the chassis, 360-degree rotation, pushable and pullable, flexible operation.

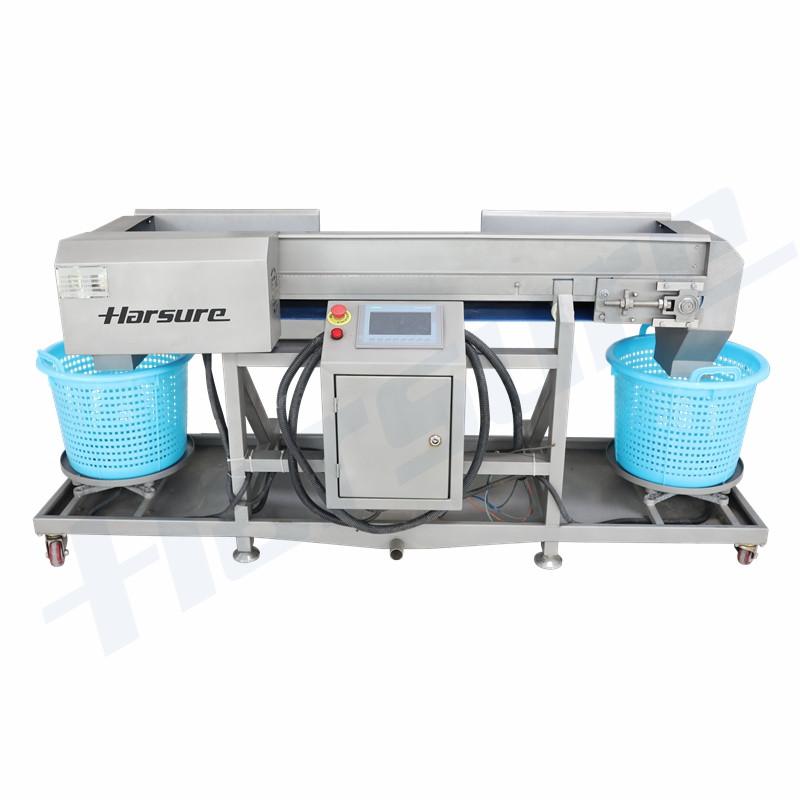

Ⅶ. Weighing Receiver
▶Product size: 2000*300*900mm
Input voltage: 380V, power: 0.4kW
▶Equipment features:
○The whole machine is made of SUS304, and the surface is sandblasted;
○Using food-grade plate belt;
○Weighing system is equipped at both ends of the machine, and the weighing weight can be set arbitrarily from 1 to 40 kg. After reaching the set weight, it will automatically turn over to transport the material back and forth.

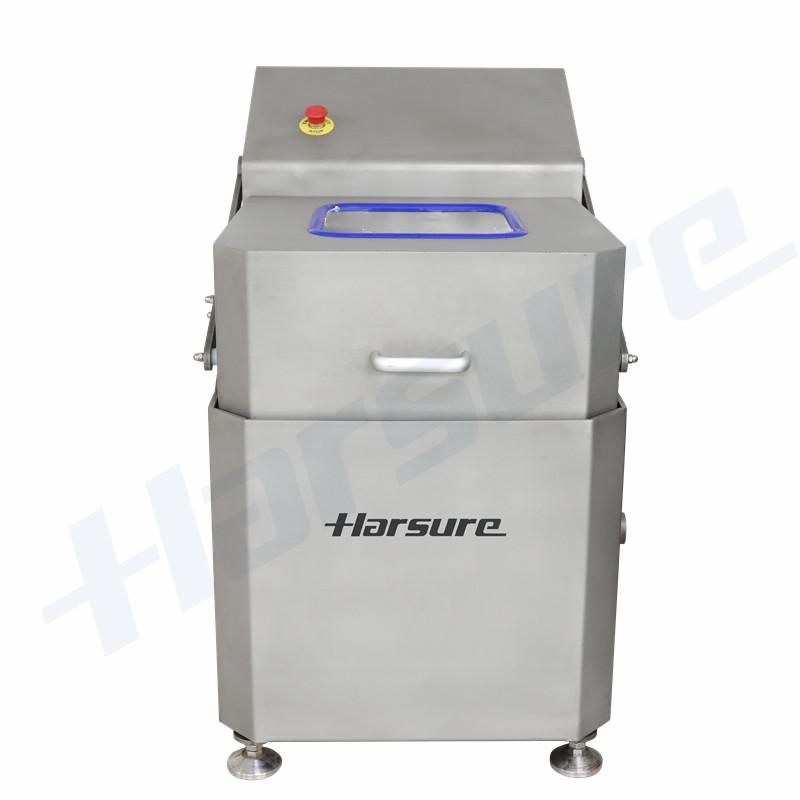

Ⅷ. Variable-frequency Dehydrator
▶Input voltage: 380V, Power: 1.1kW
Processing capacity: 500-600Kg/H
▶Application: It is used to dry the material after cleaning, which is convenient for subsequent air drying and internal packaging, and improves the quality and shelf life of the material.
▶Principle: Manually put the material into the drying drum, and the drying drum rotates at a high speed under the drive of power. Under the action of centrifugal force, the moisture on the surface of the material is separated from the material through the small holes on the drying drum, and the water is discharged through the drain. The dried material is taken out manually.
